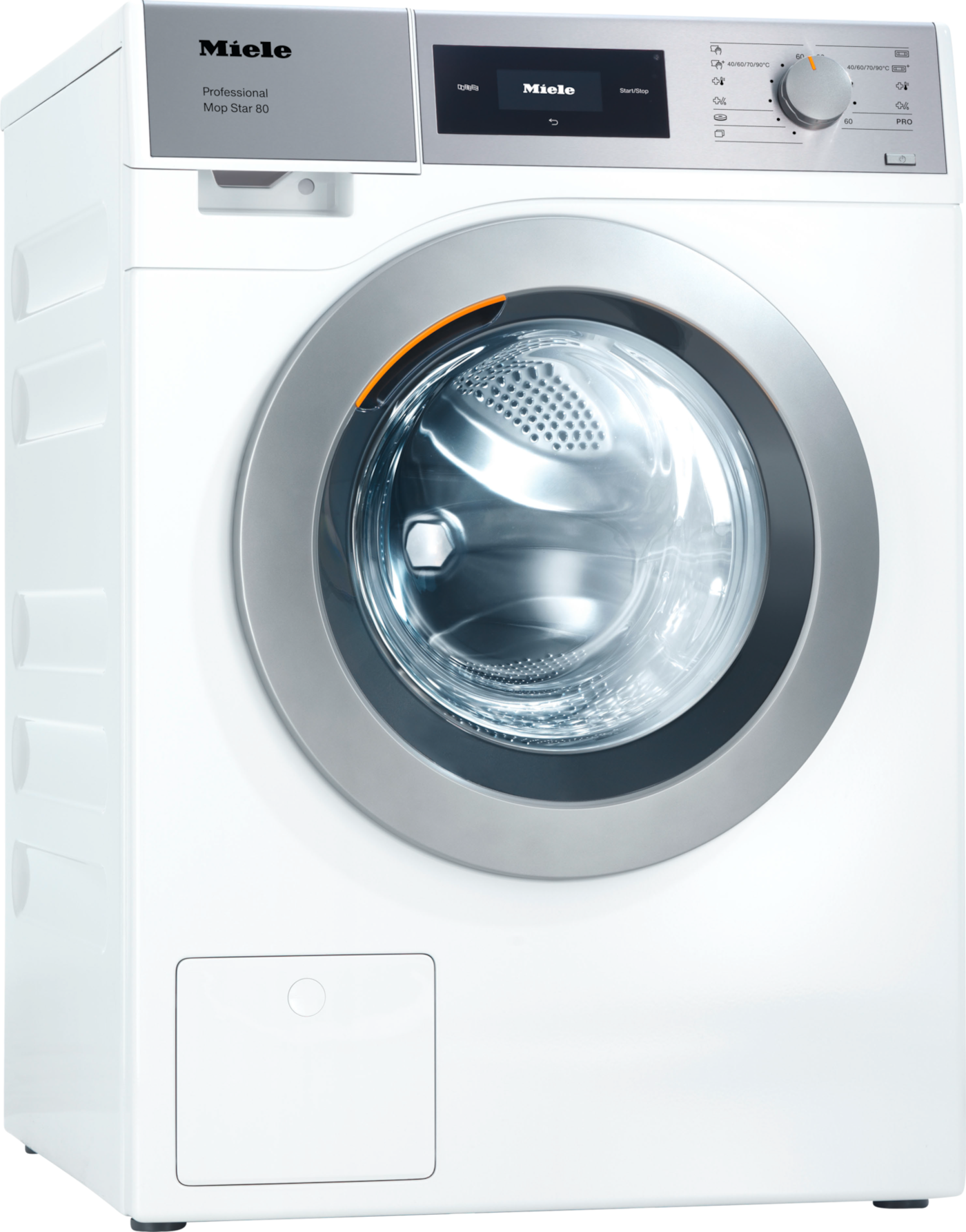

PWM 508 Mop Star 80 [EL DV-1]
Professional washing machine, Little Giants, EL heated, with drain valve designed to meet the needs of facility management. Load capacity 8 kg.
- Drum volume 73 l, load capacity 8 kg
- Tested for intensive use – unparalleled Miele quality
- Language-neutral fascia panel with rotary selector – M Select
- Thorough cleaning – special programmes for mops and cloths
- Best possible dirt removal – patented pre-spin *
Voltage:
230V~ 50HZ 25 A
Product benefits
Low consumption values Economical and efficient: laundry machines from Miele Professional boast exceptionally low consumption values. Excellent capacity thanks to process optimisation First-class efficiency thanks to short programme durations, ensuring high turnaround times. Proven hygiene Our washing machines in the Little Giants series remove more than 99.9 %* of all viruses (including coronaviruses). Short programme cycles Premium commercial technology allows you to benefit from the shortest programme cycles. Honeycomb drum with perforated drum rear panel Perfect wash results even sooner thanks to faster wetting. 3-dimensional imbalance monitoring Reliable moisture removal from wash items thanks to professional 3D sensor technology. EcoSpeed – patented wash rhythm* Intensive cleaning with reduced water consumption due to optimised changes in speed. Efficient drum rib technology Fast, optimum wetting is achieved with specially designed scoop ribs. Stainless steel flange* Long service life due to high resistance to aggressive cleaning agents. Commercial shock absorbers Incredibly smooth running even at high spin speeds with professional shock absorbers lasting for 30,000 hours. Easy-to-understand symbols The control panel is characterised by logically arranged and easy-to-understand symbols. The language can be selected easily at any time Quick and easy: it's easy to select a different language at any time during operation. M Select control system Fast, direct selection of the wash programme and effortless access to additional functions and settings. Stackable The washer-dryer stack or dryer-only stack delivers top performance on a small footprint. Payment system connection Optimum use in self-service areas is possible thanks to the connection for payment systems. LAN interface The LAN interface enables secure communication in the local network via a LAN cable. WLAN interface The WLAN interface enables wireless communication in the local network. WiFiConn@ct Simple networking via WiFiConn@ct: connect via smartphone/tablet and app* and retrieve status updates. Low consumption values Economical and efficient: laundry machines from Miele Professional boast exceptionally low consumption values. Excellent capacity thanks to process optimisation First-class efficiency thanks to short programme durations, ensuring high turnaround times. Large capacity Miele Professional washer-extractors have a large-capacity drum to accommodate even large loads of laundry. EasyDos Dispensing of liquid detergent can be set individually to suit requirements. Precise automatic load adjustment Water and energy consumption are automatically adjusted for the load size. Peak load cut-out Comprehensive energy management by integrating the machines into an energy management system. Efficient hot water connection Connection to a hot water supply enables excellent savings in time and energy with minimal effort. Proven hygiene Our washing machines in the Little Giants series remove more than 99.9 %* of all viruses (including coronaviruses). Disinfection rinse A final rinse with a special high temperature/holding time provides additional reassurance with regard to hygiene. Proven hygiene The combination of disinfection programmes and high safety standards has been verified by an independent jury. High temperature consistency For reliable cleaning results and maximum hygiene, the temperature of the washing water is monitored constantly. Short programme cycles Premium commercial technology allows you to benefit from the shortest programme cycles. Honeycomb drum with perforated drum rear panel Perfect wash results even sooner thanks to faster wetting. 3-dimensional imbalance monitoring Reliable moisture removal from wash items thanks to professional 3D sensor technology. EcoSpeed – patented wash rhythm* Intensive cleaning with reduced water consumption due to optimised changes in speed. Efficient drum rib technology Fast, optimum wetting is achieved with specially designed scoop ribs. Excellent spin performance Very low residual moisture on account of high g-factor. Preparation of cleaning cloths Cleaning cloths are reprocessed and prepared in the machine in one step. Precisely controlled water consumption The flowmeter monitors the volume of water intake precisely for maximum efficiency. Patented pre-spin* Perfect cleanliness: dusters are rinsed out before the start of the washing process. Stainless steel flange* Long service life due to high resistance to aggressive cleaning agents. Commercial shock absorbers Incredibly smooth running even at high spin speeds with professional shock absorbers lasting for 30,000 hours. Conforms to Machinery Directive Miele commercial machines comply with applicable safety regulations. Reliable water drainage The professional dump valve ensures trouble-free drainage even with coarse soiling. Powerful heater elements The washer-extractors are equipped with powerful heater elements for heating water quickly. Excellent durability Professional technology ensures excellent reliability and durability for the daily work routine. Sophisticated synchronous motor For maximum durability: the powerful, quiet, and maintenance-free synchronous motor. Easy-to-understand symbols The control panel is characterised by logically arranged and easy-to-understand symbols. The language can be selected easily at any time Quick and easy: it's easy to select a different language at any time during operation. M Select control system Fast, direct selection of the wash programme and effortless access to additional functions and settings. Stackable The washer-dryer stack or dryer-only stack delivers top performance on a small footprint. Programmable washing machine controls According to requirements: programmable controls enable perfect adaptation to suit individual needs. Time left display After the programme has started, the display shows the running time left. Delay start up to 96 hours The programme start time can be pre-set up to 96 hours in advance for efficient planning. Add laundry Did you forget an item of laundry? Don’t worry – simply open the door and add the laundry.*
Product benefits
- Highlights
- Connectivity
- Efficiency
- Hygiene
- Performance
- Quality
- User convenience
Highlights
Connectivity
Efficiency
Hygiene
Performance
Quality
User convenience



Proven hygiene
Effective against viruses – scientifically proven
Our washing machines in the Little Giants series remove more than 99.9 %* of all viruses (including coronaviruses).
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PWM 508 Mop Star 80 [EL DV-1]
EAN 4002516229513 / Article number 51508264AUS / Material number 11198540
| Construction type | Front-loader, stackablei |
| Range | Performance |
| Front | Lotus white |
| Control panel colour | Stainless steel |
| Load in kg | 8 |
| Drum volume in l | 73 |
| Door opening [Ø] in mmi | 300 |
| Door opening angle in degrees | 167 |
| Door hinge | right |
| Maintenance-free synchronous motor | |
| Honeycomb drum with perforated drum rear panel made of stainless steel |
- Construction type
- Front-loader, stackablei
- Range
- Performance
- Front
- Lotus white
- Control panel colour
- Stainless steel
- Load in kg
- 8
- Drum volume in l
- 73
- Door opening [Ø] in mmi
- 300
- Door opening angle in degrees
- 167
- Door hinge
- right
- Maintenance-free synchronous motor
- Honeycomb drum with perforated drum rear panel made of stainless steel
| Tested virucidal efficacy | |
| Proven hygiene | |
| Specific water consumption for cold water connection in l/kgi | 7.6 |
| Specific water consumption for cold water connection in Mops standard 60 °C programme in l/kg | 12.6 |
| Specific energy consumption for cold water connection in kWh/kgi | 0.163 |
| Specific energy consumption for cold water connection in Mops standard 60 °C programme in kWh/kg | 0.213 |
| Specific water consumption for hot water connection in l/kgi | 7.25 |
| Specific energy consumption for hot water connection in kWh/kgi | 0.06 |
| Water consumption with cold water connection in li | 61 |
| Water consumption for cold water connection in Mops standard 60 °C programme in l | 101 |
| Energy consumption with cold water connection in kWi | 1.3 |
| Energy consumption for cold water connection in Mops standard 60 °C programme in kWh | 1.7 |
| Programme duration in minutes with cold water connectioni | 59 |
| Water consumption with hot water connection in li | 58 |
| Energy consumption with hot water connection in kWi | 0.48 |
| Energy consumption for hot water connection in Mops standard 60 °C programme in kWh | 0.6 |
| Programme duration in minutes with cold water and hot water connectioni | 49 |
| Programme running time in minutes for Mops standard 60 °C programme with hot water connection | 47 |
| Residual moisture with cold rinse in % | 52 |
| Residual moisture with hot rinse in % | 50 |
| Residual moisture when processing cleaning cloths in %i | 20 |
| Spin speed in rpm | 1400 |
| g-factor | 535 |
- Tested virucidal efficacy
- Proven hygiene
- Specific water consumption for cold water connection in l/kgi
- 7.6
- Specific water consumption for cold water connection in Mops standard 60 °C programme in l/kg
- 12.6
- Specific energy consumption for cold water connection in kWh/kgi
- 0.163
- Specific energy consumption for cold water connection in Mops standard 60 °C programme in kWh/kg
- 0.213
- Specific water consumption for hot water connection in l/kgi
- 7.25
- Specific energy consumption for hot water connection in kWh/kgi
- 0.06
- Water consumption with cold water connection in li
- 61
- Water consumption for cold water connection in Mops standard 60 °C programme in l
- 101
- Energy consumption with cold water connection in kWi
- 1.3
- Energy consumption for cold water connection in Mops standard 60 °C programme in kWh
- 1.7
- Programme duration in minutes with cold water connectioni
- 59
- Water consumption with hot water connection in li
- 58
- Energy consumption with hot water connection in kWi
- 0.48
- Energy consumption for hot water connection in Mops standard 60 °C programme in kWh
- 0.6
- Programme duration in minutes with cold water and hot water connectioni
- 49
- Programme running time in minutes for Mops standard 60 °C programme with hot water connection
- 47
- Residual moisture with cold rinse in %
- 52
- Residual moisture with hot rinse in %
- 50
- Residual moisture when processing cleaning cloths in %i
- 20
- Spin speed in rpm
- 1400
- g-factor
- 535
| Control system | M Select |
| Programmability | programmable |
| Max. delay start in h | 96i |
| Time left display | |
| Programme sequence indicator | |
| Control panel with easy-to-understand symbols | |
| Language can be selected easily at any time |
| Detergent drawer | 3 compartments |
| Flexible dispensing adapter (optional) | |
| Maximum number of connections for liquid dispenser pumps [number] | 6i |
| Empty sensing |
| Heating type | Electric |
| Electrical connection | 230V~ 50HZ |
| Drying class in kW | 4.6 |
| Total rated load in kW | 4.8 |
| Fuse rating in A | 25 |
- Heating type
- Electric
- Electrical connection
- 230V~ 50HZ
- Drying class in kW
- 4.6
- Total rated load in kW
- 4.8
- Fuse rating in A
- 25
| External dimensions, height in mm | 850 |
| External dimensions, width in mm | 596 |
| External dimensions, depth in mm | 714 |
| External dimensions, gross height in mmi | 944 |
| External dimensions, gross width in mmi | 660 |
| External dimensions, gross depth in mmi | 768 |
| Net weight in kg | 101 |
| Gross weight in kgi | 105 |
| Maximum floor load in Ni | 2820 |
- External dimensions, height in mm
- 850
- External dimensions, width in mm
- 596
- External dimensions, depth in mm
- 714
- External dimensions, gross height in mmi
- 944
- External dimensions, gross width in mmi
- 660
- External dimensions, gross depth in mmi
- 768
- Net weight in kg
- 101
- Gross weight in kgi
- 105
- Maximum floor load in Ni
- 2820
| Patented pre-spin | |
| Cloths reprocessing | |
| 3-dimensional imbalance monitoring | |
| Commercial shock absorbers | |
| Hard-wearing stainless-steel flange | |
| Disinfection rinse | |
| EcoSpeed | |
| Efficient drum rib technology | |
| Temperature monitoring | |
| Special heater element | |
| Automatic load control | |
| Flow meter | |
| Communication slot | |
| Add laundry | |
| Machine-independent accessories |
- Patented pre-spin
- Cloths reprocessing
- 3-dimensional imbalance monitoring
- Commercial shock absorbers
- Hard-wearing stainless-steel flange
- Disinfection rinse
- EcoSpeed
- Efficient drum rib technology
- Temperature monitoring
- Special heater element
- Automatic load control
- Flow meter
- Communication slot
- Add laundry
- Machine-independent accessories
| Recycling rate in % | 95 |
- Recycling rate in %
- 95
| Payment system (optional) | |
| Optical interface for service access | |
| Peak load cut-out / energy management (optional) | |
| WiFi | |
| LAN module (optional) | |
| WiFiConn@ct |
| Cloths, 22 g [number] | 182 |
| Cotton mops, 40 cm/190 g [number] | 42 |
| Cotton mops, 50 cm/220 g [number] | 36 |
| Microfibre mops, 40 cm/120 g [number] | 66 |
| Microfibre mops, 50 cm/170 g [number] | 47 |
- Cloths, 22 g [number]
- 182
- Cotton mops, 40 cm/190 g [number]
- 42
- Cotton mops, 50 cm/220 g [number]
- 36
- Microfibre mops, 40 cm/120 g [number]
- 66
- Microfibre mops, 50 cm/170 g [number]
- 47
| CE | |
| VDE-EMC | |
| VDE | |
| Splash-proof safety rating IPX4 | |
| WEEE | |
| Complies with Machinery Directive 2006/42/EC |
- CE
- VDE-EMC
- VDE
- Splash-proof safety rating IPX4
- WEEE
- Complies with Machinery Directive 2006/42/EC
