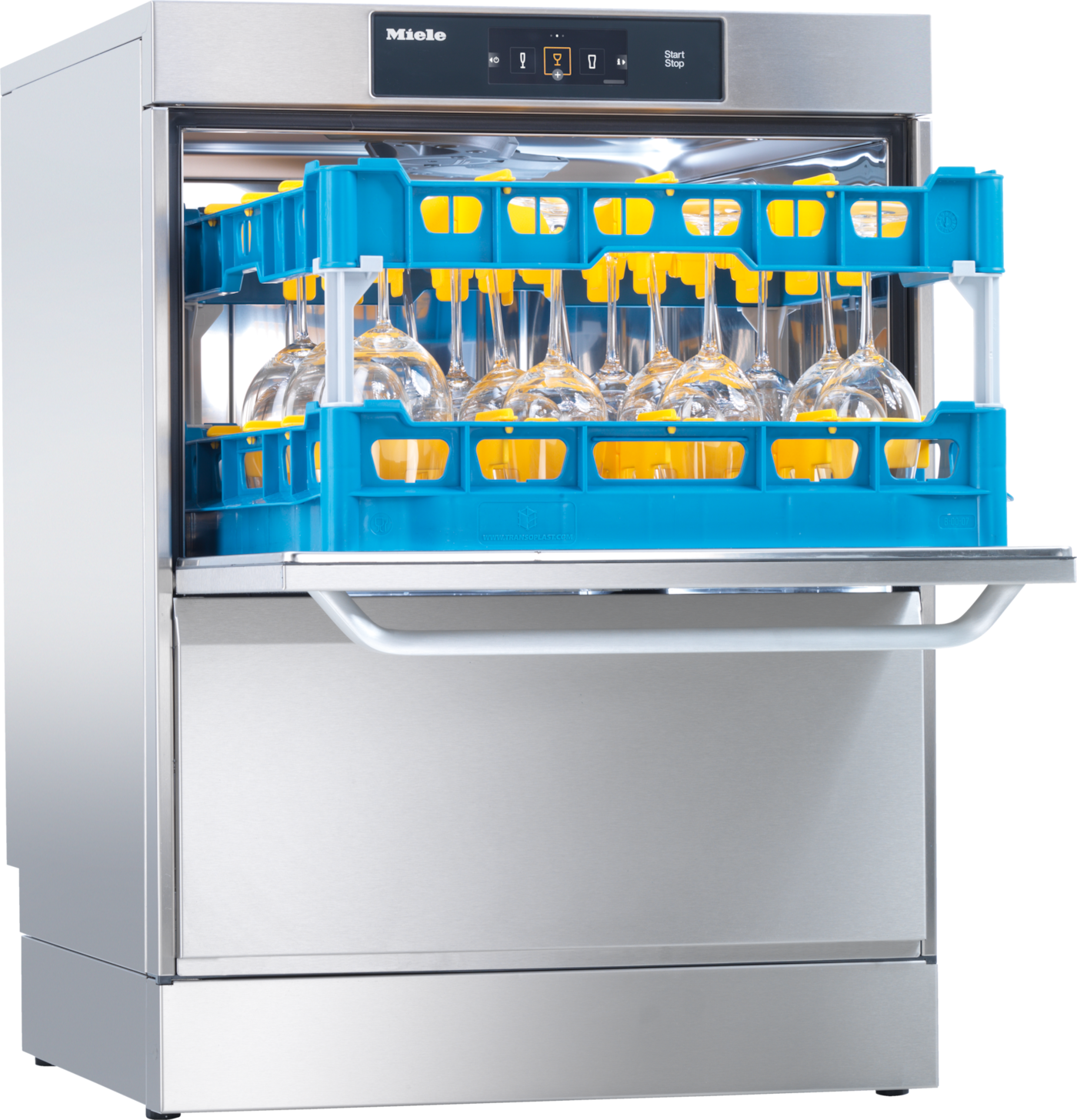

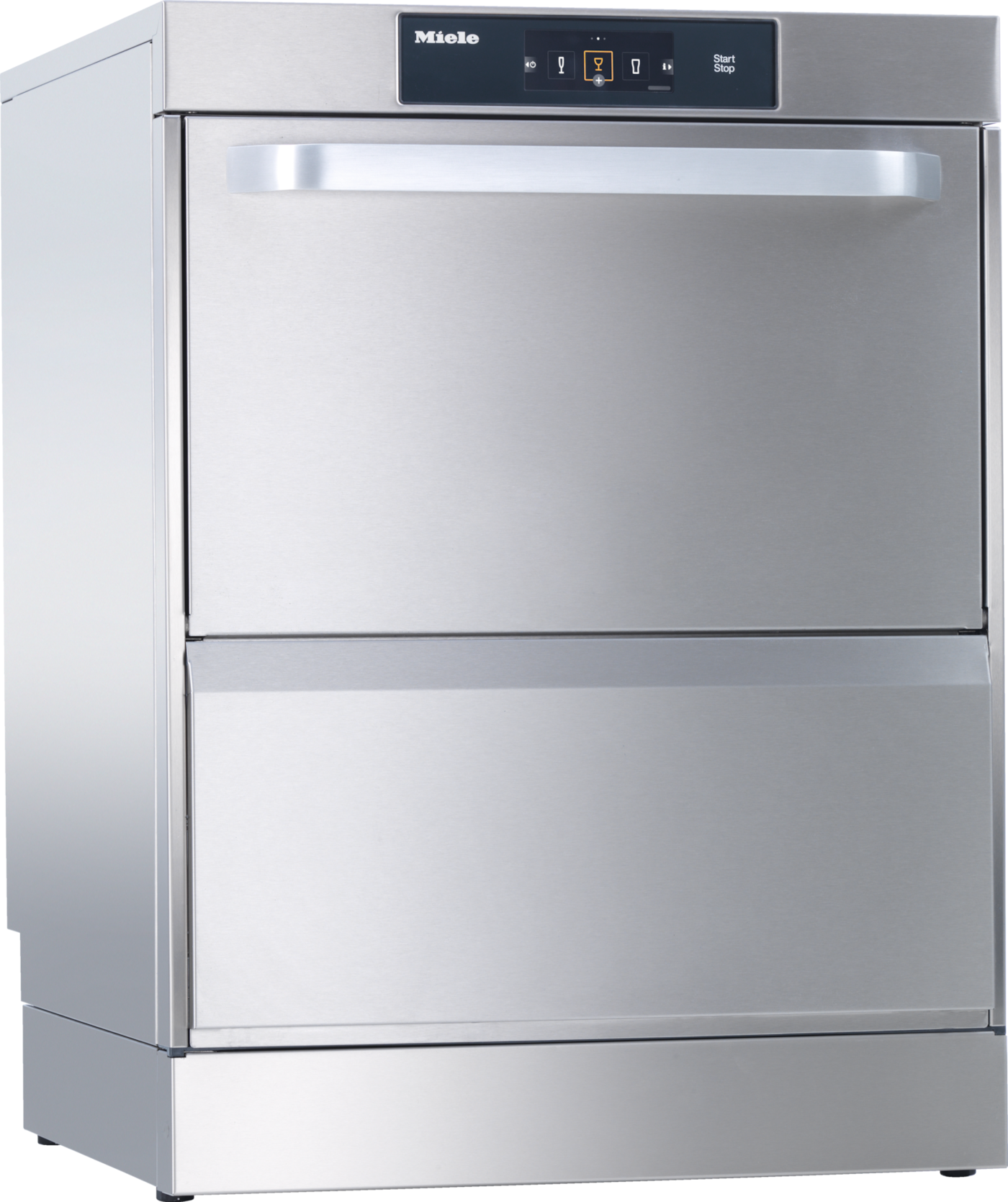

PTD 702 [RO]
Tank dishwasher compact size – 60 cm bistro dishwasher with integr. reverse osmosis system.
- Maximum cleaning performance: 1960glasses/h
- Simple and flexible operation – full-touch display
- Perfect results without manual polishing
- Optimal cleaning – max. surface coverage and best filter system
- Perfect for integration in under-counter installations
Voltage:
3N AC 380-415V 50HZ 16 A
Product benefits

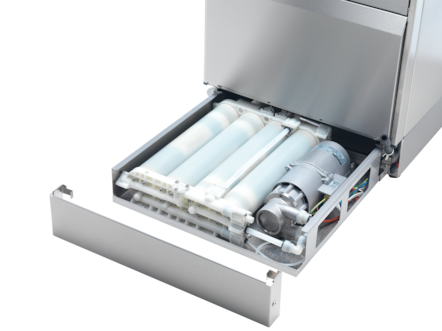

Proven hygiene Our tank dishwashers remove more than 99.9 %* of all viruses (including coronaviruses). Optimised spray arm Optimised nozzle design helps to achieve optimum surface coverage and efficient use of resources. Integrated reverse osmosis system Perfect solution for sparkling glasses & shiny cutlery when space is limited, e.g. in a run of units. Tank dishwasher Very short cycles due to the permanent supply of hot water. Load-specific programmes Regardless of the items and how dirty they are, there is an effective programme for all requirements. Adjustable programme parameters Adjusting the programme parameters as required ensures consistently perfect dishwashing results. Integrated dispenser pump for liquid detergent Automatic dispensing saves time and makes the process reliable. Perfect integration in a run of units Perfect appearance thanks to dishwashers that can be built-under. Individual basket configuration For optimum loading that perfectly meets your needs. Low consumption values Economical and efficient: Miele Professional dishwashers stand out with low consumption values. Highly effective filter system Outstanding dishwashing results and reliability are largely due to the highly effective filter system. Integrated water softener The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results. PerfectWater Innovative: The PerfectWater function prevents resalination of the water. WaterEco* Cost-effective: The water quality can be used according to demand. Proven hygiene Our tank dishwashers remove more than 99.9 %* of all viruses (including coronaviruses). Optimised spray arm Optimised nozzle design helps to achieve optimum surface coverage and efficient use of resources. Integrated reverse osmosis system Perfect solution for sparkling glasses & shiny cutlery when space is limited, e.g. in a run of units. Tank dishwasher Very short cycles due to the permanent supply of hot water. Load-specific programmes Regardless of the items and how dirty they are, there is an effective programme for all requirements. Adjustable programme parameters Adjusting the programme parameters as required ensures consistently perfect dishwashing results. Booster pump For optimum cleaning results with short wash cycles – irrespective of the local water pressure. Spray arm control If a spray arm is obstructed by crockery or cutlery, the display will indicate this. Conforms to Machinery Directive Miele commercial machines comply with applicable safety regulations. Hygienic tank interior Particularly hygienic: The thermoformed wash cabinet prevents deposits and reduces the time spent cleaning. Integrated dispenser pump for liquid detergent Automatic dispensing saves time and makes the process reliable. Perfect integration in a run of units Perfect appearance thanks to dishwashers that can be built-under. Selectable display languages All-rounder: you can choose the language for the display so that you fully understand everything. Full-touch display All the main information is accessible quickly and easily via the convenient full-touch display. Internal dispenser unit for rinse aid The rinse aid is dispensed automatically. The preset dosage can be altered if required. Extensive range of accessories Always perfect ergonomics and efficiency – with practical accessories, from special baskets to dispenser pumps.
Product benefits
- Highlights
- Basket design
- Efficiency
- Hygiene
- Performance
- Quality
- User convenience
Highlights
Basket design
Efficiency
Hygiene
Performance
Quality
User convenience

Proven hygiene
Effective against viruses – scientifically proven
Our tank dishwashers remove more than 99.9 %* of all viruses (including coronaviruses).

Optimised spray arm
Efficient
Optimised nozzle design helps to achieve optimum surface coverage and efficient use of resources.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PTD 702 [RO]
EAN 4002516104254 / Article number 61070205D / Material number 11097650
| Permeate yield at 15 °C intake temperature in l/h (minimum) | 42 |
| Salt retention rate in % (minimum) | 93 |
- Permeate yield at 15 °C intake temperature in l/h (minimum)
- 42
- Salt retention rate in % (minimum)
- 93
| Control system | Electronic controls |
| Programme selection | Full-touch display |
| Automatic On/Off standby switch | |
| Dishwashing programmes [number] | 3 |
| Adjustable final rinse temperature | |
| Adjustable wash temperature | |
| Adjustable rinse time | |
| Coloured programme sequence indicator | |
| Choice of display language |
| Electrical connection | 3N AC 380-415V 50HZ |
| Tank drying class in kW | 1.8 |
| Boiler drying class in kW | 4.9 |
| Total rated load in kW | 8.1 |
| Fuse rating in A | 16 |
| Length of mains connection cable in mi | 1.5 |
- Electrical connection
- 3N AC 380-415V 50HZ
- Tank drying class in kW
- 1.8
- Boiler drying class in kW
- 4.9
- Total rated load in kW
- 8.1
- Fuse rating in A
- 16
- Length of mains connection cable in mi
- 1.5
| Electrical connection | 3 AC 230V 50HZ |
| Drying class in kW | 0 |
| Total rated load in kW | 5.2 |
| Fuse rating in A | 20 |
- Electrical connection
- 3 AC 230V 50HZ
- Drying class in kW
- 0
- Total rated load in kW
- 5.2
- Fuse rating in A
- 20
| Electrical connection | 3N AC 380-415V 50HZ |
| Drying class in kW | 0 |
| Total rated load in kW | 6.2 |
| Fuse rating in A | 10 |
- Electrical connection
- 3N AC 380-415V 50HZ
- Drying class in kW
- 0
- Total rated load in kW
- 6.2
- Fuse rating in A
- 10
| Electrical connection | 3 AC 230V 50HZ |
| Drying class in kW | 0 |
| Total rated load in kW | 7.5 |
| Fuse rating in A | 25 |
- Electrical connection
- 3 AC 230V 50HZ
- Drying class in kW
- 0
- Total rated load in kW
- 7.5
- Fuse rating in A
- 25
| Electrical connection | AC 220-240V 50HZ |
| Drying class in kW | 0 |
| Total rated load in kW | 2.8 |
| Fuse rating in A | 13 |
- Electrical connection
- AC 220-240V 50HZ
- Drying class in kW
- 0
- Total rated load in kW
- 2.8
- Fuse rating in A
- 13
| Electrical connection | AC 220-240V 50HZ |
| Drying class in kW | 0 |
| Total rated load in kW | 3.4 |
| Fuse rating in A | 16 |
- Electrical connection
- AC 220-240V 50HZ
- Drying class in kW
- 0
- Total rated load in kW
- 3.4
- Fuse rating in A
- 16
| Electrical connection | AC 220-240V 50HZ |
| Drying class in kW | 0 |
| Total rated load in kW | 4.4 |
| Fuse rating in A | 20 |
- Electrical connection
- AC 220-240V 50HZ
- Drying class in kW
- 0
- Total rated load in kW
- 4.4
- Fuse rating in A
- 20
| Cold water [number] | 1 |
| Maximum temperature of inlet water in °C | 35 |
| Maximum conductivity of the inlet water in µs/cm | 1200 μS/cm |
| Maximum limit value of silicates in mg/l | 30 mg/l |
| Maximum limit value of chlorine in mg/l | 0.2 mg/l |
| Required flow pressure in bar | 1.4-6 |
| Drain pump head height from floor level, max. in cm | 60 |
| Booster pump | |
| Maximum water hardness in mmol/li | 6.3 |
| Integrated reverse osmosis system | |
| PerfectWater | |
| WaterEco | |
| Water consumption per wash cycle in l | 2 |
| Length of water inlet hose in cm | 150 |
| Length of water drain hose in cm | 150 |
- Cold water [number]
- 1
- Maximum temperature of inlet water in °C
- 35
- Maximum conductivity of the inlet water in µs/cm
- 1200 μS/cm
- Maximum limit value of silicates in mg/l
- 30 mg/l
- Maximum limit value of chlorine in mg/l
- 0.2 mg/l
- Required flow pressure in bar
- 1.4-6
- Drain pump head height from floor level, max. in cm
- 60
- Booster pump
- Maximum water hardness in mmol/li
- 6.3
- Integrated reverse osmosis system
- PerfectWater
- WaterEco
- Water consumption per wash cycle in l
- 2
- Length of water inlet hose in cm
- 150
- Length of water drain hose in cm
- 150
| External dimensions, height in mmi | 820 |
| Maximum height adjustment in mm | 35 |
| External dimensions, net width in mm | 600 |
| External dimensions, net depth in mm | 617 |
| External dimensions, gross height in mmi | 870 |
| External dimensions, gross width in mmi | 650 |
| External dimensions, gross depth in mmi | 667 |
| Usable space in wash cabinet, height in mm | 309 |
| Usable space in wash cabinet, width in mm | 510 |
| Usable space in wash cabinet, depth in mm | 568 |
| In-feed height above floor in mm | 423 |
| Net weight [kg] | 85 |
| Gross weight in kgi | 95 |
| Maximum floor load in N/m²i | 790 |
- External dimensions, height in mmi
- 820
- Maximum height adjustment in mm
- 35
- External dimensions, net width in mm
- 600
- External dimensions, net depth in mm
- 617
- External dimensions, gross height in mmi
- 870
- External dimensions, gross width in mmi
- 650
- External dimensions, gross depth in mmi
- 667
- Usable space in wash cabinet, height in mm
- 309
- Usable space in wash cabinet, width in mm
- 510
- Usable space in wash cabinet, depth in mm
- 568
- In-feed height above floor in mm
- 423
- Net weight [kg]
- 85
- Gross weight in kgi
- 95
- Maximum floor load in N/m²i
- 790
| Programme for light soiling | |
| Programme for normal soiling | |
| Programme for heavy soiling | |
| Additional programme options | |
| Load-item specific | |
| Self-cleaning | |
| Descaling |
| Integrated dispenser pump/dispensing module for rinsing agent | |
| Integrated dispenser pump/dispensing module for liquid cleaning agent | |
| Highly effective filter system | |
| Spray arm monitor for all spray arms | |
| Wash cabinet made from high-quality stainless steel (1.4401) | |
| Temperature indicator for tank and boiler | |
| Hygienic tank wash cabinet | |
| Rotating spray system (top + bottom) | |
| A wide range of accessories (optional) |
- Integrated dispenser pump/dispensing module for rinsing agent
- Integrated dispenser pump/dispensing module for liquid cleaning agent
- Highly effective filter system
- Spray arm monitor for all spray arms
- Wash cabinet made from high-quality stainless steel (1.4401)
- Temperature indicator for tank and boiler
- Hygienic tank wash cabinet
- Rotating spray system (top + bottom)
- A wide range of accessories (optional)
| Suction lances for external media canisters [number] | 2 |
- Suction lances for external media canisters [number]
- 2
| CE | |
| Complies with Machinery Directive 2006/42/EC | |
| Splash-proof IPX3 | |
| DIN EN 17735 | |
| UKCA | |
| SVGW |
- CE
- Complies with Machinery Directive 2006/42/EC
- Splash-proof IPX3
- DIN EN 17735
- UKCA
- SVGW
