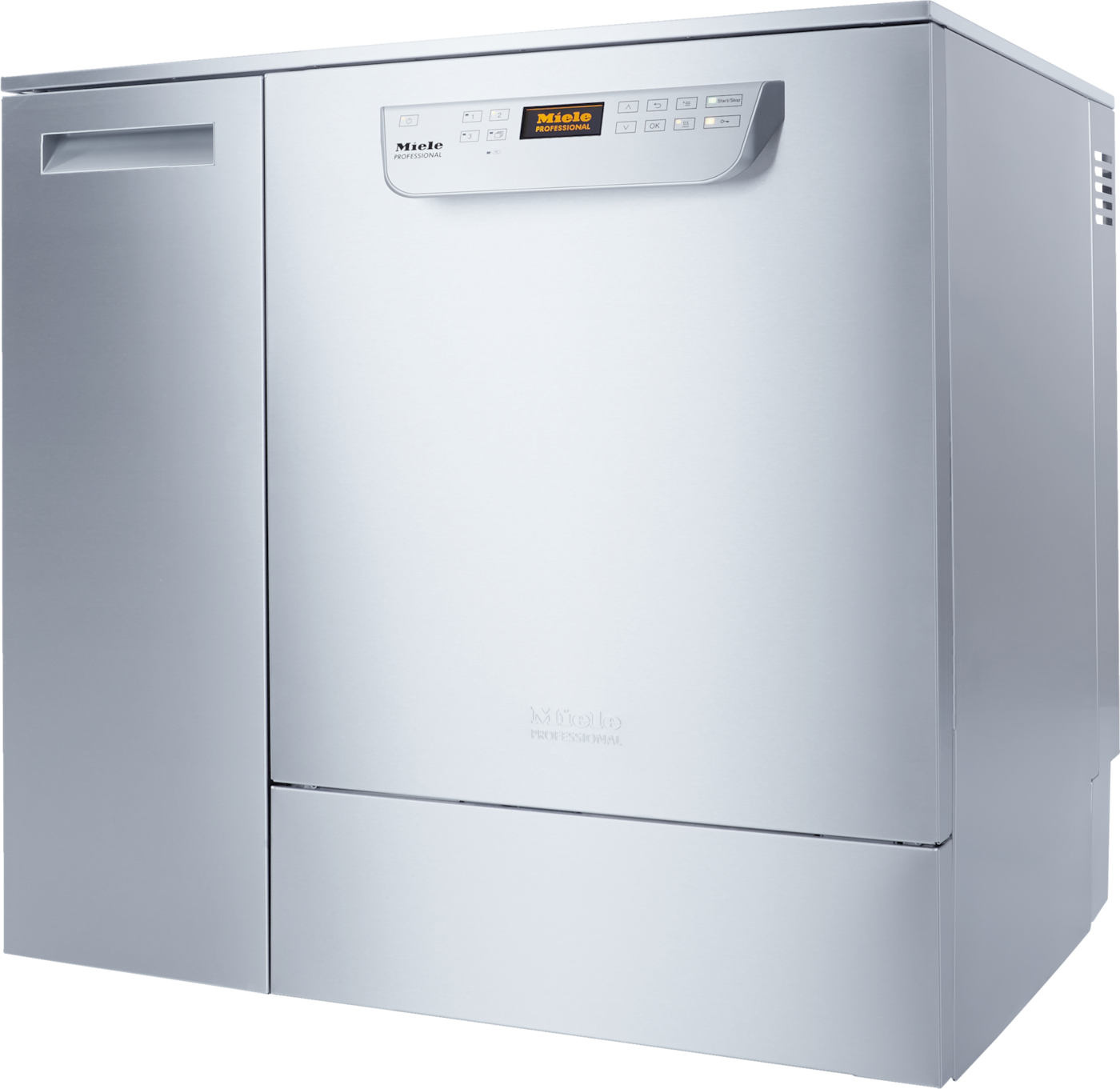

PG 8583 CD [WW ADP CM]
Lab washer with pump for AD water, liquid dispensing, DryPlus and conductivity monitoring.
- Performance/cycle, e.g. 128laboratory bottles
- Efficient use of resources – variable speed pump heater
- Safety – Wash pressure, spray arm and conductivity monitoring
- 72 % less water consumption compared to predecessor model*
- Efficient hot air drying – DryPlus
- Total security – link to process documentation possible
Voltage:
3N AC 400V 50HZ 15-16 A
Product benefits
DryPlus Efficient hot air drying: ideal for drying hollow instruments or narrow-lumened laboratory glassware. Crevice-free chamber Perfect hygiene through optimised geometry and laser welding. Conductivity monitoring Reliably clean: residue-free final rinse for perfect results. Spray arm sensing Reliable cleaning performance thanks to the monitoring of the rotation speed of the spray arm. Spray pressure monitoring The wash pressure is monitored for perfect cleaning results. Variable speed heater pump Exclusively for Miele Professional: the wash pressure is perfectly tailored to the changing requirements. Integrated water softener The integrated water softener ensures optimum cleaning effectiveness. DryPlus Efficient hot air drying: ideal for drying hollow instruments or narrow-lumened laboratory glassware. RS 232 serial interface The serial interface facilitates the exchange of data with other appliances, e.g. for process documentation. Crevice-free chamber Perfect hygiene through optimised geometry and laser welding. Heater elements outside wash cabinet Additional hygiene: the heating elements are installed outside the wash chamber. Service-friendly design Short service times thanks to maintenance-optimised appliance design. Conductivity monitoring Reliably clean: residue-free final rinse for perfect results. Spray arm sensing Reliable cleaning performance thanks to the monitoring of the rotation speed of the spray arm. Spray pressure monitoring The wash pressure is monitored for perfect cleaning results. HEPA filter Protection against contamination thanks to particle-free drying air. Process documentation Safety through the clear documentation of all the reprocessing steps. Waterproof system (WPS) All-round protection against flooding: in the event of problems, the system stops water inlet automatically. Clear text display Everything at a glance: the display shows everything as clear text in the country-specific language. AutoClose* Very slight pressure against the door is sufficient to activate the AutoClose feature. Short cut buttons Quick and convenient access to frequently used programmes. Setting options for media canisters Tidy and clean: setting options for liquid media. Large selection of components Flexible and comprehensive components for optimum cleaning performance and a variety of reprocessing options. Patented in-door salt container Ergonomic convenience: the in-door salt container is particularly easy to fill. Can be built under a worktop The machine can be easily integrated under a worktop. Additional integrable dispenser pumps For applications that require additional media, additional dispenser pumps can be integrated into the machine.
Product benefits
- Highlights
- Cleaning results
- Connectivity
- Quality
- Safety
- User convenience
Highlights
Cleaning results
Connectivity
Quality
Safety
User convenience

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PG 8583 CD [WW ADP CM]
EAN 4002515632857 / Article number 62858351AUS / Material number 10226980
| Construction type | Freestanding, can be built-under, wide, with lid |
| Casing | Stainless steel |
| Can be built-under | |
| AutoClose – automatic door lock | |
| Buzzer, acoustic signal at end of programme | |
| Service-friendly design |
| Laboratory flasks per cycle [number] | 128 |
| Pipettes per cycle [number] | 98 |
- Laboratory flasks per cycle [number]
- 128
- Pipettes per cycle [number]
- 98
| Control type | TouchControl |
| Programme selection | Touch on Metali |
| Direct-access pushbuttons | |
| Max. delay start in h | 24 |
| Programmability | programmable |
| Programmes [number] | 15 |
| Free programme positions [number] | 2 |
| A0 value controls | |
| Automatic programme restart | |
| Time left display | |
| Programme sequence display | |
| Selectable display languages |
- Control type
- TouchControl
- Programme selection
- Touch on Metali
- Direct-access pushbuttons
- Max. delay start in h
- 24
- Programmability
- programmable
- Programmes [number]
- 15
- Free programme positions [number]
- 2
- A0 value controls
- Automatic programme restart
- Time left display
- Programme sequence display
- Selectable display languages
| Electrical connection | 3N AC 400V 50HZ |
| Electric drying class in kW | 8.5 |
| Total rated load in kW | 9.3 |
| Fuse rating in A | 15-16 |
| Length of mains connection cable in mi | 1.8 |
- Electrical connection
- 3N AC 400V 50HZ
- Electric drying class in kW
- 8.5
- Total rated load in kW
- 9.3
- Fuse rating in A
- 15-16
- Length of mains connection cable in mi
- 1.8
| Electrical connection | AC 230V 50HZ |
| Electric drying class in kW | 5.5 |
| Total rated load in kW | 6.3 |
| Fuse rating in A | 30-32 |
- Electrical connection
- AC 230V 50HZ
- Electric drying class in kW
- 5.5
- Total rated load in kW
- 6.3
- Fuse rating in A
- 30-32
| Electrical connection | AC 230V 50HZ |
| Electric drying class in kW | 2.5 |
| Total rated load in kW | 3.3 |
| Fuse rating in A | 15-16 |
- Electrical connection
- AC 230V 50HZ
- Electric drying class in kW
- 2.5
- Total rated load in kW
- 3.3
- Fuse rating in A
- 15-16
| Cold water [number] | 1 |
| Cold water for steam condenser [number] | 1 |
| Hot water [number]i | 1 |
| VEP – with feed pump for demineralised water [number]i | 1 |
| Required flow pressure in kPai | 200-1000 |
| Maximum delivery head for drain pump in cm | 100 |
| Integrated water softener | |
| Maximum water hardness (cold water/hot water) in mmol/l | 10.7 |
| Drain pump [DN] | 22 |
| Water protection systemi | Waterproof system |
- Cold water [number]
- 1
- Cold water for steam condenser [number]
- 1
- Hot water [number]i
- 1
- VEP – with feed pump for demineralised water [number]i
- 1
- Required flow pressure in kPai
- 200-1000
- Maximum delivery head for drain pump in cm
- 100
- Integrated water softener
- Maximum water hardness (cold water/hot water) in mmol/l
- 10.7
- Drain pump [DN]
- 22
- Water protection systemi
- Waterproof system
| Integrated drying unit | |
| Fan in kW | 0.3 |
| Heater element in kW | 2.2 |
| Air throughput in m³/h | 60 |
| Time setting in 1-minute increments | 0-120 |
| HEPA filter class | H14i |
| HEPA filter filtration efficiency (in accordance with DIN EN 1822) in % | 99.995 |
| HEPA filter service life in h | 500 |
| External dimensions, net height in mm | 835 |
| External dimensions, net width in mm | 900 |
| External dimensions, net depth in mm | 700 |
| External dimensions, gross height in mmi | 1095 |
| External dimensions, gross width in mmi | 1200 |
| External dimensions, gross depth in mmi | 800 |
| Wash cabinet, usable height in mm | 520 |
| Wash cabinet, usable width in mm | 530 |
| Wash cabinet, depth of upper basket in mm | 474 |
| Wash cabinet, depth of lower basket in mm | 520 |
| Net weight in kg | 98 |
| Gross weight in kgi | 133 |
- External dimensions, net height in mm
- 835
- External dimensions, net width in mm
- 900
- External dimensions, net depth in mm
- 700
- External dimensions, gross height in mmi
- 1095
- External dimensions, gross width in mmi
- 1200
- External dimensions, gross depth in mmi
- 800
- Wash cabinet, usable height in mm
- 520
- Wash cabinet, usable width in mm
- 530
- Wash cabinet, depth of upper basket in mm
- 474
- Wash cabinet, depth of lower basket in mm
- 520
- Net weight in kg
- 98
- Gross weight in kgi
- 133
| 1 dispenser pump for liquid cleaning agent | |
| 1 dispenser pump for neutralising agent | |
| Additional integrated dispenser pumps (optional) | |
| Steam condenser | |
| Spray pressure monitoring | |
| Spray arm monitoring | |
| Conductivity monitoring | |
| Interface for process documentation (optional) | |
| Multi-component filter system | |
| Variable-speed heater pump | |
| Load carrier – direct coupling | |
| DryPlus | |
| In-door salt container | |
| Customer Service optical interface | |
| Setting options for process chemicals (3 x 5 l/2 x 10 l) | |
| Wash cabinet seamlessly welded using laser technology | |
| Heater elements outside wash cabinet | |
| Wash cabinet made from high-quality stainless steel (1.4301/304) | |
| Extensive components (option) |
- 1 dispenser pump for liquid cleaning agent
- 1 dispenser pump for neutralising agent
- Additional integrated dispenser pumps (optional)
- Steam condenser
- Spray pressure monitoring
- Spray arm monitoring
- Conductivity monitoring
- Interface for process documentation (optional)
- Multi-component filter system
- Variable-speed heater pump
- Load carrier – direct coupling
- DryPlus
- In-door salt container
- Customer Service optical interface
- Setting options for process chemicals (3 x 5 l/2 x 10 l)
- Wash cabinet seamlessly welded using laser technology
- Heater elements outside wash cabinet
- Wash cabinet made from high-quality stainless steel (1.4301/304)
- Extensive components (option)
| VDE (electrical safety) | |
| IP safety class according to EN 60529: IP 21 | |
| EN 61010-1 | |
| EN 61010-2-040 | |
| RoHS guideline 2011/65/EU | |
| WaterMark |
- VDE (electrical safety)
- IP safety class according to EN 60529: IP 21
- EN 61010-1
- EN 61010-2-040
- RoHS guideline 2011/65/EU
- WaterMark
