Back to Laboratory glasswashers

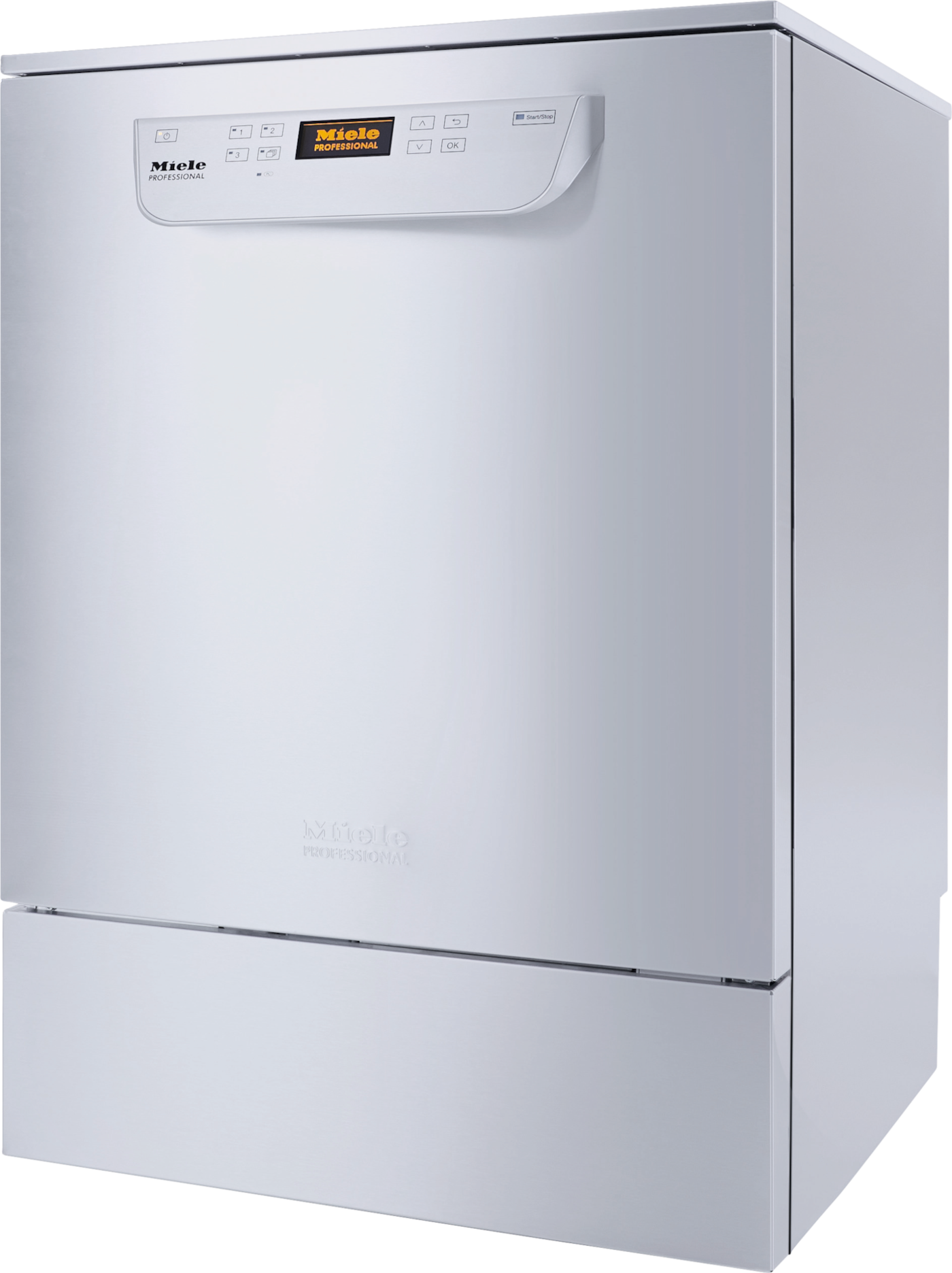

PG 8504 [ADP]
Lab washer with feed pump for demineralised water.
- Performance/cycle, e.g. 64 narrow-necked/laboratory glasses w/ injector nozzles
- Efficient use of resources – variable speed pump heater
- Dispense process chemicals easily: in-door powder dispenser
- Pump for DI water: final rinse with DI water
Voltage:
AC 230V 50HZ 15-16 A
Product benefits
Crevice-free chamber Perfect hygiene through optimised geometry and laser welding. Variable speed heater pump Exclusively for Miele Professional: the wash pressure is perfectly tailored to the changing requirements. Integrated water softener The integrated water softener ensures optimum cleaning effectiveness. Crevice-free chamber Perfect hygiene through optimised geometry and laser welding. Heater elements outside wash cabinet Additional hygiene: the heating elements are installed outside the wash chamber. Service-friendly design Short service times thanks to maintenance-optimised appliance design. Waterproof system (WPS) All-round protection against flooding: in the event of problems, the system stops water inlet automatically. Clear text display Everything at a glance: the display shows everything as clear text in the country-specific language. Short cut buttons Quick and convenient access to frequently used programmes. Large selection of components Flexible and comprehensive components for optimum cleaning performance and a variety of reprocessing options. Patented in-door salt container Ergonomic convenience: the in-door salt container is particularly easy to fill. Can be built under a worktop The machine can be easily integrated under a worktop.
Product benefits
- Highlights
- Cleaning results
- Quality
- Safety
- User convenience
Highlights
Cleaning results
Quality
Safety
User convenience
Product details
PG 8504 [ADP]
EAN 4002515588451 / Article number 62850422AUS / Material number 10138450
| Construction type | Freestanding, can be built-under, SlimLine |
| Casing | Stainless steel |
| Can be built-under | |
| Electric door lock | |
| Buzzer, acoustic signal at end of programme | |
| Service-friendly design |
| Narrow-necked glassware per cycle [number] | 64 |
- Narrow-necked glassware per cycle [number]
- 64
| Control type | TouchControl |
| Programme selection | Touch on Metali |
| Direct-access pushbuttons | |
| Max. delay start in h | 24 |
| Programmability | programmable |
| Programmes [number] | 6 |
| Free programme positions [number] | 2 |
| Automatic programme restart | |
| Time left display | |
| Programme sequence display | |
| Selectable display languages |
| Electrical connection | AC 230V 50HZ |
| Electric drying class in kW | 2.5 |
| Total rated load in kW | 3.2 |
| Fuse rating in A | 15-16 |
| Length of mains connection cable in mi | 1.9 |
- Electrical connection
- AC 230V 50HZ
- Electric drying class in kW
- 2.5
- Total rated load in kW
- 3.2
- Fuse rating in A
- 15-16
- Length of mains connection cable in mi
- 1.9
| Cold water [number] | 1 |
| VEP – with feed pump for demineralised water [number]i | 1 |
| Required flow pressure in kPai | 200-1000 |
| Maximum delivery head for drain pump in cm | 100 |
| Integrated water softener | |
| Maximum water hardness (cold water/hot water) in mmol/l | 10.7 |
| Drain pump [DN] | 22 |
| Water protection systemi | Waterproof system |
- Cold water [number]
- 1
- VEP – with feed pump for demineralised water [number]i
- 1
- Required flow pressure in kPai
- 200-1000
- Maximum delivery head for drain pump in cm
- 100
- Integrated water softener
- Maximum water hardness (cold water/hot water) in mmol/l
- 10.7
- Drain pump [DN]
- 22
- Water protection systemi
- Waterproof system
| External dimensions, net height in mm | 835 |
| External dimensions, net width in mm | 600 |
| External dimensions, net depth in mm | 600 |
| External dimensions, gross height in mmi | 940 |
| External dimensions, gross width in mmi | 675 |
| External dimensions, gross depth in mmi | 745 |
| Wash cabinet, usable height in mm | 520 |
| Wash cabinet, usable width in mm | 530 |
| Wash cabinet, depth of upper basket in mm | 474 |
| Wash cabinet, depth of lower basket in mm | 520 |
| Net weight in kg | 72 |
| Gross weight in kgi | 79 |
| Maximum floor load in N/m²i | 1200 |
- External dimensions, net height in mm
- 835
- External dimensions, net width in mm
- 600
- External dimensions, net depth in mm
- 600
- External dimensions, gross height in mmi
- 940
- External dimensions, gross width in mmi
- 675
- External dimensions, gross depth in mmi
- 745
- Wash cabinet, usable height in mm
- 520
- Wash cabinet, usable width in mm
- 530
- Wash cabinet, depth of upper basket in mm
- 474
- Wash cabinet, depth of lower basket in mm
- 520
- Net weight in kg
- 72
- Gross weight in kgi
- 79
- Maximum floor load in N/m²i
- 1200
| Short | |
| Medium | |
| Long |
- Short
- Medium
- Long
| 1 door dispenser for rinse aid | |
| 1 door dispenser for powder cleaning agent | |
| Multi-component filter system | |
| Variable-speed heater pump | |
| Load carrier – direct coupling | |
| In-door salt container | |
| Customer Service optical interface | |
| Wash cabinet seamlessly welded using laser technology | |
| Heater elements outside wash cabinet | |
| Wash cabinet made from high-quality stainless steel (1.4301/304) | |
| Extensive components (option) |
- 1 door dispenser for rinse aid
- 1 door dispenser for powder cleaning agent
- Multi-component filter system
- Variable-speed heater pump
- Load carrier – direct coupling
- In-door salt container
- Customer Service optical interface
- Wash cabinet seamlessly welded using laser technology
- Heater elements outside wash cabinet
- Wash cabinet made from high-quality stainless steel (1.4301/304)
- Extensive components (option)
| External dispensing modules |
- External dispensing modules
| VDE (electrical safety) | |
| IP safety class according to EN 60529: IP 21 | |
| EN 61010-1 | |
| EN 61010-2-040 | |
| RoHS guideline 2011/65/EU | |
| WaterMark |
- VDE (electrical safety)
- IP safety class according to EN 60529: IP 21
- EN 61010-1
- EN 61010-2-040
- RoHS guideline 2011/65/EU
- WaterMark
