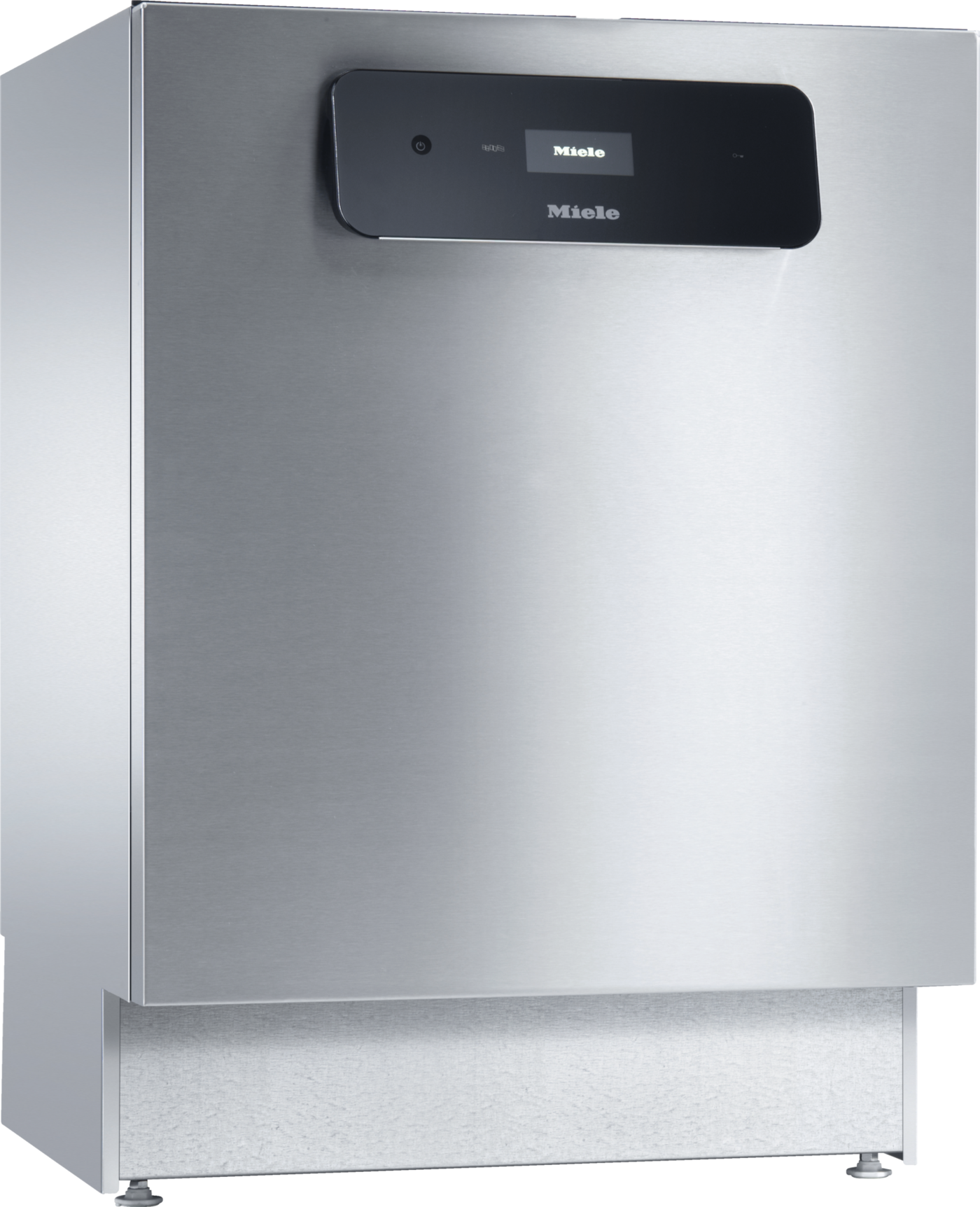

PFD 401 U [WB Marine]
Built-under fresh water dishwasher with baskets approved by Lloyd’s Register.
- Max. cleaning performance*: 285 plates/h or 15baskets/h
- Versatile processing of two wire or plastic baskets per cycle
- Excellent user convenience with touch display – M Touch Basic
- Always the right programme – item-specific solutions
- First-class results thanks to fresh water wash system
Voltage:
3N AC 400V 50HZ 16 A
Product benefits
Powerful cleaning performance on 2 levels High capacity: All kinds of items can be arranged safely on 2 versatile wash levels. Fresh water system Constantly high cleaning performance and hygiene thanks to repeated water changes. Very short programme cycles Thanks to intelligent professional technology you can benefit from very short programmes and perfect results. Adjustable programme parameters Adjusting the programme parameters as required ensures consistently perfect dishwashing results. Quality you can rely on Durability: Miele Professional dishwashers are tested for a long service life. Lloyd’s Register approved Certified safety for your ship and crew, the environment and all processes on board. M Touch Basic controls Use all dishwashing programmes and machine functions conveniently with a tap on the clear text touch display. Hygienic cleanliness down to the very last detail Medication cups and lids can also be cleaned hygienically using inserts that are available separately. Plastic baskets on two levels It is possible to use the plastic baskets on two levels as an option. Practical bottle basket Bottles can be reliably cleaned inside using the APFD 210 basket, which is available to purchase separately. Professional baskets Functional design for superb washing and reliable drying results. Future-proof networking via Wi-Fi Fully informed with a high-performance network connection. Powerful cleaning performance on 2 levels High capacity: All kinds of items can be arranged safely on 2 versatile wash levels. Low consumption values Economical and efficient: Miele Professional dishwashers stand out with low consumption values. Efficient hot water connection Connection to a hot water supply shortens the programme cycle times, reducing energy consumption. Connection for rinse aid dispenser module An optional module can be connected for convenient, economical dispensing of rinse aid. Connection for detergent dispenser module An optional dispenser can be connected for convenient and economical use of liquid detergents. Highly effective filter system Outstanding dishwashing results and reliability are largely due to the highly effective filter system. Integrated water softener The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results. Fresh water system Constantly high cleaning performance and hygiene thanks to repeated water changes. Proven hygiene Our dishwashers in the PFD 40x series remove 99.999 %* of most bacteria. Proven hygiene Our dishwashers in the PFD 40x series remove more than 99.9 %* of viruses (including coronaviruses). Very short programme cycles Thanks to intelligent professional technology you can benefit from very short programmes and perfect results. Adjustable programme parameters Adjusting the programme parameters as required ensures consistently perfect dishwashing results. Perfect GlassCare A gentle way to a perfect shine: With Perfect GlassCare, your glasses are thoroughly and gently cleaned. Perfect integration into kitchen runs and worktops Perfect appearance thanks to dishwashers that can be built-under. Quality you can rely on Durability: Miele Professional dishwashers are tested for a long service life. Lloyd’s Register approved Certified safety for your ship and crew, the environment and all processes on board. Conforms to Machinery Directive Miele commercial machines comply with applicable safety regulations. Water protection guarantee* Maximum peace of mind: Miele will pay for damage resulting from a defective water protection system for 20 years. M Touch Basic controls Use all dishwashing programmes and machine functions conveniently with a tap on the clear text touch display. AutoClose Very slight pressure against the door is sufficient to activate the AutoClose feature. Selectable display languages All-rounder: you can choose the language for the display so that you fully understand everything. In-door salt container Ergonomic convenience: The salt container can be conveniently refilled without removing the lower basket. Delay start and countdown indicator For maximum flexibility, a delay start time of up to 24 hours can be selected. Extensive range of accessories Always perfect ergonomics and efficiency – with practical accessories, from special baskets to dispenser pumps.
Product benefits
- Highlights
- Basket design
- Connectivity
- Efficiency
- Hygiene
- Performance
- Quality
- User convenience
Highlights
Basket design
Connectivity
Efficiency
Hygiene
Performance
Quality
User convenience

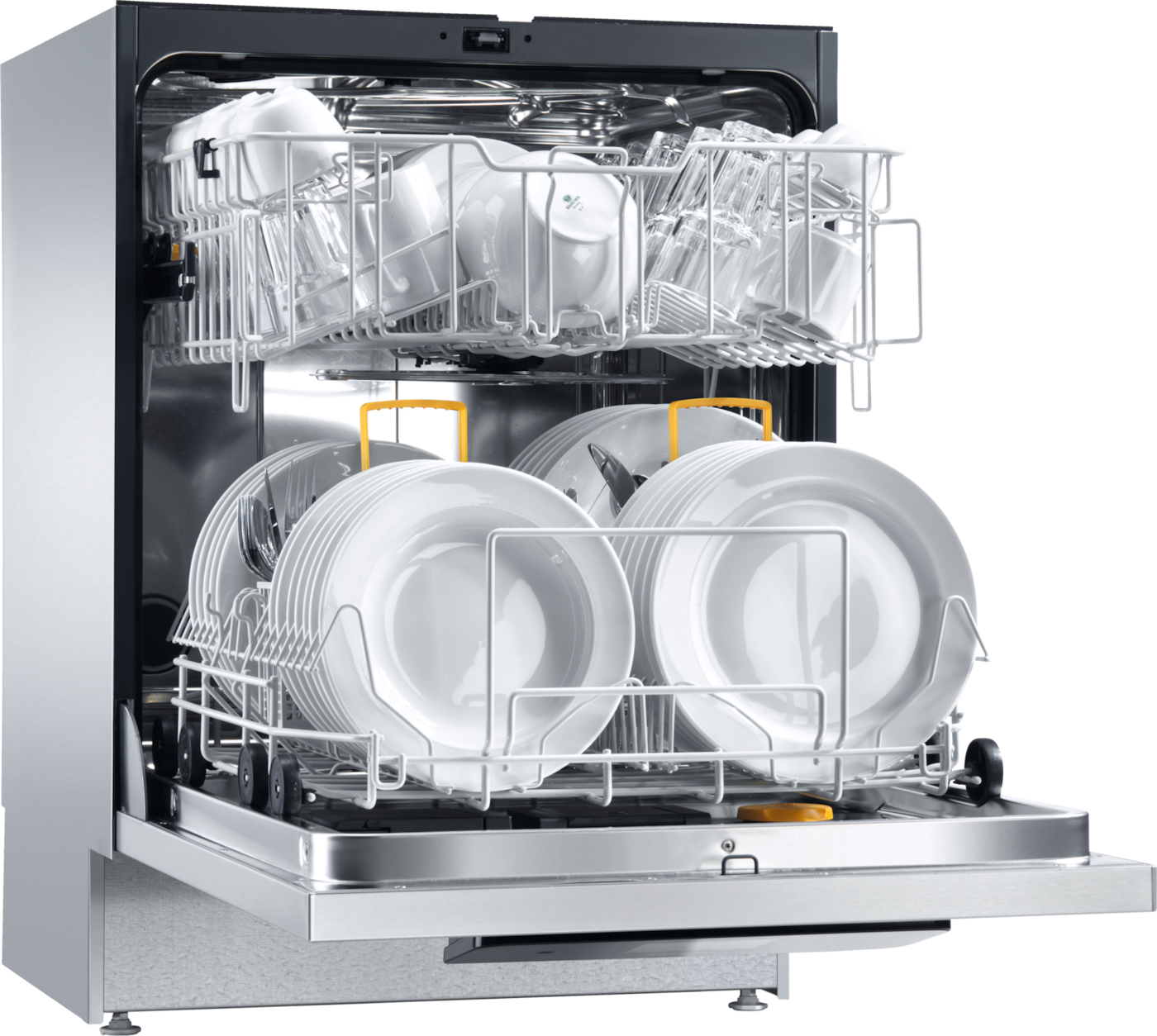

Powerful cleaning performance on 2 levels
Large wash cabinet
High capacity: All kinds of items can be arranged safely on 2 versatile wash levels.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PFD 401 U [WB Marine]
EAN 4002516604631 / Article number 61040130MAR / Material number 12143270
| Control system | M Touch Basic |
| Max. delay start in h | 24 |
| Time left display | |
| Dishwashing programmes [number] | 10 |
| Adjustable temperature holding time | |
| Adjustable final rinse temperature | |
| Programme sequence indicator | |
| Choice of display language | |
| Language-neutral operation |
- Control system
- M Touch Basic
- Max. delay start in h
- 24
- Time left display
- Dishwashing programmes [number]
- 10
- Adjustable temperature holding time
- Adjustable final rinse temperature
- Programme sequence indicator
- Choice of display language
- Language-neutral operation
| Electrical connection | AC 230V 50HZ |
| Drying class in kW | 3 |
| Total rated load in kW | 3.4 |
| Fuse rating in A | 16 |
- Electrical connection
- AC 230V 50HZ
- Drying class in kW
- 3
- Total rated load in kW
- 3.4
- Fuse rating in A
- 16
| Cold water [number] | 1 |
| Hot water [number] | 1i |
| Required flow pressure in bar | 0.4-10 |
| Drain pump [DN] | 22 |
| Drain pump head height from floor level, max. in cm | 100 |
| Integrated water softener | |
| Maximum water hardness in mmol/li | 10.7 |
| Water protection system | Waterproof systemi |
| Water consumption per wash cycle in l | 17.5 |
| Length of water inlet hose in cm | 170 |
| Length of water drain hose in cm | 150 |
- Cold water [number]
- 1
- Hot water [number]
- 1i
- Required flow pressure in bar
- 0.4-10
- Drain pump [DN]
- 22
- Drain pump head height from floor level, max. in cm
- 100
- Integrated water softener
- Maximum water hardness in mmol/li
- 10.7
- Water protection system
- Waterproof systemi
- Water consumption per wash cycle in l
- 17.5
- Length of water inlet hose in cm
- 170
- Length of water drain hose in cm
- 150
| External dimensions, height in mmi | 820 |
| External dimensions, net width in mm | 598 |
| External dimensions, net depth in mm | 580 |
| External dimensions, gross height in mmi | 920 |
| External dimensions, gross width in mmi | 670 |
| External dimensions, gross depth in mmi | 740 |
| Usable space in wash cabinet, height in mm | 530 |
| Usable space in wash cabinet, width in mm | 536 |
| Usable space in wash cabinet, depth of upper basket | 474 |
| Usable space in wash cabinet, depth of lower basket in mm | 516 |
| In-feed height above floor in mm | 216 |
| Required niche width in mm | 600 |
| Net weight [kg] | 65 |
| Gross weight in kgi | 75 |
| Maximum floor load in N/m²i | 1200 |
- External dimensions, height in mmi
- 820
- External dimensions, net width in mm
- 598
- External dimensions, net depth in mm
- 580
- External dimensions, gross height in mmi
- 920
- External dimensions, gross width in mmi
- 670
- External dimensions, gross depth in mmi
- 740
- Usable space in wash cabinet, height in mm
- 530
- Usable space in wash cabinet, width in mm
- 536
- Usable space in wash cabinet, depth of upper basket
- 474
- Usable space in wash cabinet, depth of lower basket in mm
- 516
- In-feed height above floor in mm
- 216
- Required niche width in mm
- 600
- Net weight [kg]
- 65
- Gross weight in kgi
- 75
- Maximum floor load in N/m²i
- 1200
| Drying | without |
| AutoClose | |
| 1 combi dispenser in the door for powder cleaning agent and rinsing agent | |
| In-door salt container | |
| Perfect GlassCare | |
| Highly effective filter system with filter monitoring | |
| Wash cabinet made from high-quality stainless steel (1.4401) | |
| Optical interface | |
| A wide range of accessories (optional) |
- Drying
- without
- AutoClose
- 1 combi dispenser in the door for powder cleaning agent and rinsing agent
- In-door salt container
- Perfect GlassCare
- Highly effective filter system with filter monitoring
- Wash cabinet made from high-quality stainless steel (1.4401)
- Optical interface
- A wide range of accessories (optional)
| CE | |
| Complies with Machinery Directive 2006/42/EC | |
| Splash-protection IPX1 | |
| EMC radio suppressed | |
| DIN 10512 | |
| DIN EN 17735 | |
| Lloyd’s Register |
- CE
- Complies with Machinery Directive 2006/42/EC
- Splash-protection IPX1
- EMC radio suppressed
- DIN 10512
- DIN EN 17735
- Lloyd’s Register
