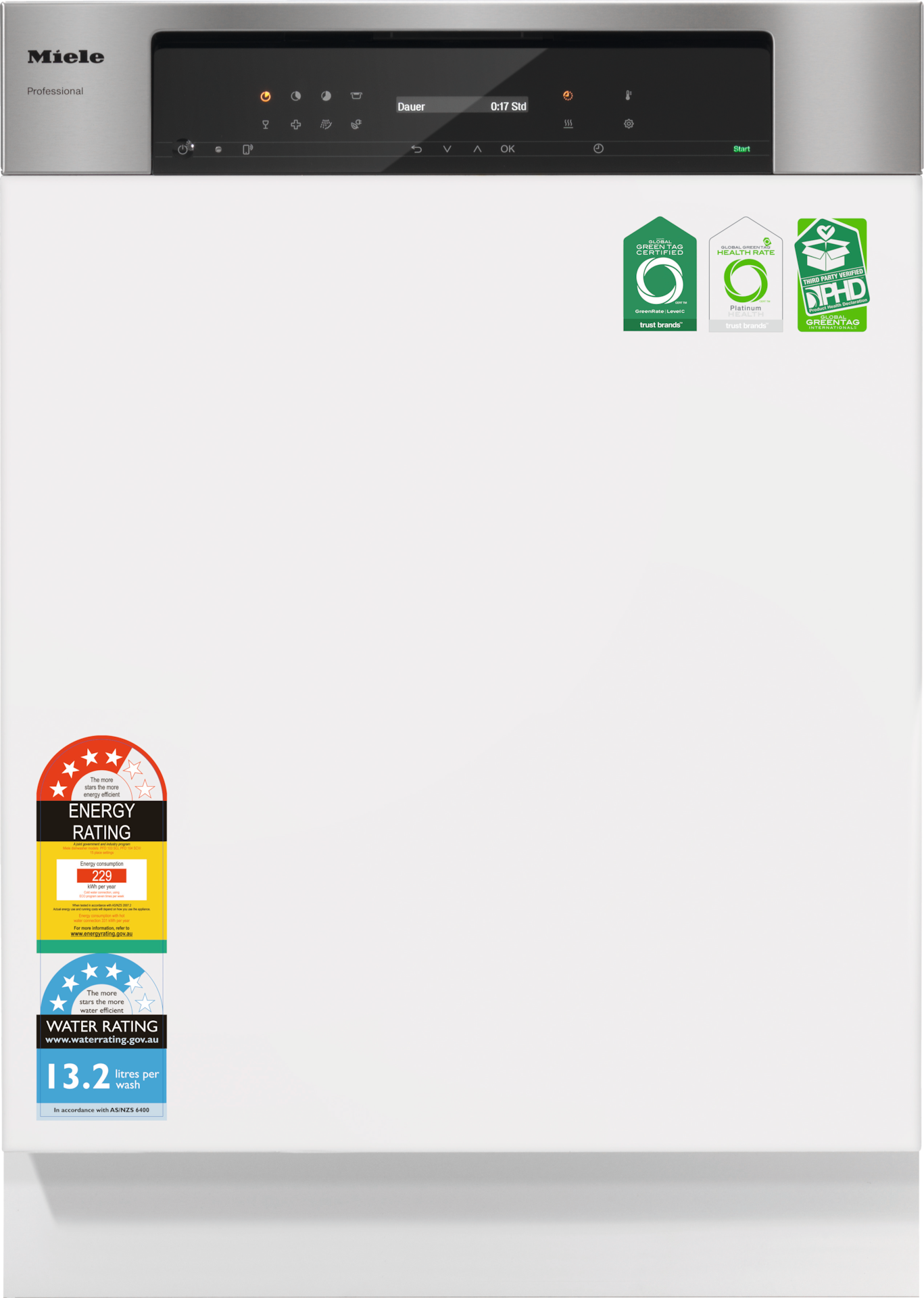

PFD 103 SCi XXL
Integrated XXL dishwasher with 3D MultiFlex tray for easily managing piles of domestic dishes.
- Wash performance: 15 place settings in just 28 min*
- 13 % less energy consumption*
- Perfect lighting for easy loading – BrilliantLight
- Everything completely dry – AutoOpen assisted drying
- Innovative design and maximum convenience – 3D MultiFlex tray
Select voltage:
Product benefits
Fresh water system Constantly high cleaning performance and hygiene thanks to repeated water changes. Proven hygiene Our dishwashers in the PFD 10x series remove more than 99.9 %* of all viruses (including coronaviruses). For businesses These dishwashers are ideally suited to all areas which deal with large amounts of crockery. AutoOpen assisted drying Completely dry: The dishwasher door opens automatically at the end of the programme. XXL lab washers Maximum convenience: the 85 cm height commercial dishwasher provides plenty of extra space for your crockery. Quality you can rely on Durability: Miele Professional dishwashers are tested for a long service life. BrilliantLight* Brilliant visibility: 4 LEDs illuminate the entire interior cabinet for easy loading and unloading. 3D MultiFlex tray* Efficient: ingenious adjustment options create space in the dishwasher even for small items. FlexLine baskets Flexibility creates convenience: easy adjustment and flexible loading for the best cleaning results. Height-adjustable upper basket The height of the upper basket can be adjusted to suit the items being cleaned. Practical bottle basket Bottles can be reliably cleaned inside using the APFD 210 basket, which is available to purchase separately. Future-proof networking via Wi-Fi Fully informed with a high-performance network connection. Low consumption values Economical and efficient: Miele Professional dishwashers stand out with low consumption values. EcoFeedback Economical: when a programme is selected, estimated water consumption values are displayed. FlexiTimer with EcoStart Clever: with EcoStart, the dishwasher automatically selects the cheapest electricity tariff every time. Connection for detergent dispenser module An optional dispenser can be connected for convenient and economical use of liquid detergents. Highly effective filter system Outstanding dishwashing results and reliability are largely due to the highly effective filter system. Integrated water softener The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results. SmartStart Practical: this function sets the machine to work automatically when electricity is at its cheapest. Fresh water system Constantly high cleaning performance and hygiene thanks to repeated water changes. Proven hygiene Our dishwashers in the PFD 10x series remove more than 99.9 %* of all viruses (including coronaviruses). Proven hygiene Our dishwashers in the PFD 10x series remove 99.999 %* of most bacteria. For businesses These dishwashers are ideally suited to all areas which deal with large amounts of crockery. AutoOpen assisted drying Completely dry: The dishwasher door opens automatically at the end of the programme. XXL lab washers Maximum convenience: the 85 cm height commercial dishwasher provides plenty of extra space for your crockery. Brilliant GlassCare Gentle and delicate: Brilliant GlassCare cleans your glassware with care. Commercial electrical connection Even large amounts of crockery can be cleaned quickly thanks to the high-performance electrical connection. Quality you can rely on Durability: Miele Professional dishwashers are tested for a long service life. Powerful heater pump For maximum cleaning performance, every dishwasher is equipped with a powerful heater pump. Conforms to Machinery Directive Miele commercial machines comply with applicable safety regulations. Water protection guarantee* Maximum peace of mind: Miele will pay for damage resulting from a defective water protection system for 20 years. BrilliantLight* Brilliant visibility: 4 LEDs illuminate the entire interior cabinet for easy loading and unloading. Provided with plug Plug and play: with its plug attached ex works, all you need is a socket to connect it. AutoClose Very slight pressure against the door is sufficient to activate the AutoClose feature. Selectable display languages All-rounder: you can choose the language for the display so that you fully understand everything. Delay start and countdown indicator For maximum flexibility, a delay start time of up to 24 hours can be selected.
Product benefits
- Highlights
- Basket design
- Connectivity
- Efficiency
- Hygiene
- Performance
- Quality
- User convenience
Highlights
Basket design
Connectivity
Efficiency
Hygiene
Performance
Quality
User convenience


Proven hygiene
Effective against viruses – scientifically proven
Our dishwashers in the PFD 10x series remove more than 99.9 %* of all viruses (including coronaviruses).
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PFD 103 SCi XXL
EAN 4002516367093 / Article number 61010304AUS / Material number 11605810
| Suitable for aged care facilities | |
| Suitable for guesthouses | |
| Suitable for child care facilities | |
| Suitable for universities and schools | |
| Suitable for offices | |
| Suitable for small businesses | |
| Suitable for sports clubs |
| Control system | Electronic controls |
| Programme selection | Programme selector buttons |
| Max. delay start in h | 24 |
| Time left display | |
| Dishwashing programmes [number] | 8 |
| Adjustable final rinse temperature | |
| Programme sequence indicator | |
| Choice of display language | |
| Check filter indicator |
| Electrical connection | AC 230V 50HZ |
| Drying class in kW | 3 |
| Total rated load in kW | 3.2 |
| Fuse rating in A | 15-16 |
| Length of mains connection cable in mi | 1.7 |
| Provided with plug |
| Electrical connection | AC 230V 50HZ |
| Drying class in kW | 1.9 |
| Total rated load in kW | 2.1 |
| Fuse rating in A | 10 |
- Electrical connection
- AC 230V 50HZ
- Drying class in kW
- 1.9
- Total rated load in kW
- 2.1
- Fuse rating in A
- 10
| Cold or hot water [number] | 1 |
| Required flow pressure in bar | 1-10 |
| Drain pump [DN] | 22 |
| Drain pump head height from floor level, max. in cm | 100 |
| Integrated water softener | |
| Maximum water hardness in mmol/li | 6.5 |
| Water protection system | Waterproof systemi |
| Length of water inlet hose in cm | 150 |
| Length of water drain hose in cm | 150 |
- Cold or hot water [number]
- 1
- Required flow pressure in bar
- 1-10
- Drain pump [DN]
- 22
- Drain pump head height from floor level, max. in cm
- 100
- Integrated water softener
- Maximum water hardness in mmol/li
- 6.5
- Water protection system
- Waterproof systemi
- Length of water inlet hose in cm
- 150
- Length of water drain hose in cm
- 150
| External dimensions, height in mmi | 845 |
| External dimensions, net width in mm | 598 |
| External dimensions, net depth in mm | 570 |
| External dimensions, gross height in mmi | 970 |
| External dimensions, gross width in mmi | 670 |
| External dimensions, gross depth in mmi | 690 |
| Usable space in wash cabinet, height in mm | 580 |
| Usable space in wash cabinet, width in mm | 510 |
| Usable space in wash cabinet, depth of upper basket | 450 |
| Usable space in wash cabinet, depth of lower basket in mm | 450 |
| In-feed height above floor in mm | 210 |
| Required niche width in mm | 600 |
| Net weight [kg] | 48 |
| Gross weight in kgi | 57 |
| Maximum floor load in N/m²i | 1000 |
- External dimensions, height in mmi
- 845
- External dimensions, net width in mm
- 598
- External dimensions, net depth in mm
- 570
- External dimensions, gross height in mmi
- 970
- External dimensions, gross width in mmi
- 670
- External dimensions, gross depth in mmi
- 690
- Usable space in wash cabinet, height in mm
- 580
- Usable space in wash cabinet, width in mm
- 510
- Usable space in wash cabinet, depth of upper basket
- 450
- Usable space in wash cabinet, depth of lower basket in mm
- 450
- In-feed height above floor in mm
- 210
- Required niche width in mm
- 600
- Net weight [kg]
- 48
- Gross weight in kgi
- 57
- Maximum floor load in N/m²i
- 1000
| MaxiComfort P baskets | |
| Flexible FlexLine basket design | |
| FlexCare glass holder [number] | 4 |
| FlexCare cup rack [number] | 2 |
| Height-adjustable upper basket | |
| Combinable with APFD 210 bottle basket | |
| Patented 3D MultiFlex tray |
| Commercial-grade electrical connection | |
| Drying | Extra dryingi Active condensation dryingi AutoOpen assisted dryingi |
| AutoClose | |
| 1 combi dispenser in the door for powder cleaning agent and rinsing agent | |
| BrilliantLight | |
| EcoFeedback | |
| Safety lock | |
| Brilliant GlassCare | |
| Wash cabinet made from high-quality stainless steel (1.4401) | |
| Optical interface | |
| SmartStart | |
| FlexiTimer with EcoStart |
- Commercial-grade electrical connection
- AutoClose
- 1 combi dispenser in the door for powder cleaning agent and rinsing agent
- BrilliantLight
- EcoFeedback
- Safety lock
- Brilliant GlassCare
- Wash cabinet made from high-quality stainless steel (1.4401)
- Optical interface
- SmartStart
- FlexiTimer with EcoStart
| CE | |
| Complies with Machinery Directive 2006/42/EC | |
| VDE | |
| EMC radio suppressed | |
| DIN EN 17735 | |
| EN 1717 | |
| WaterMark |
- CE
- Complies with Machinery Directive 2006/42/EC
- VDE
- EMC radio suppressed
- DIN EN 17735
- EN 1717
- WaterMark
