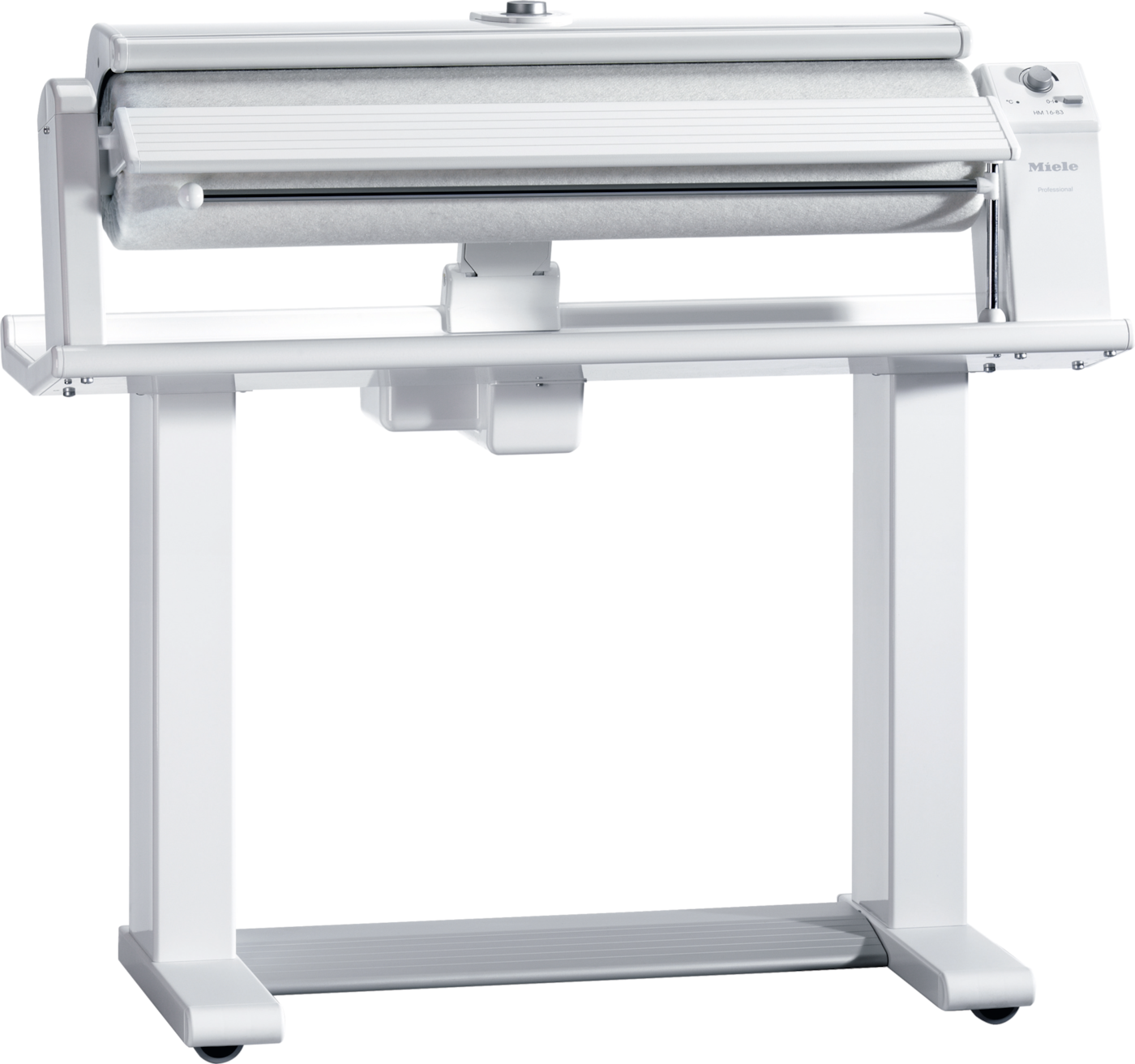

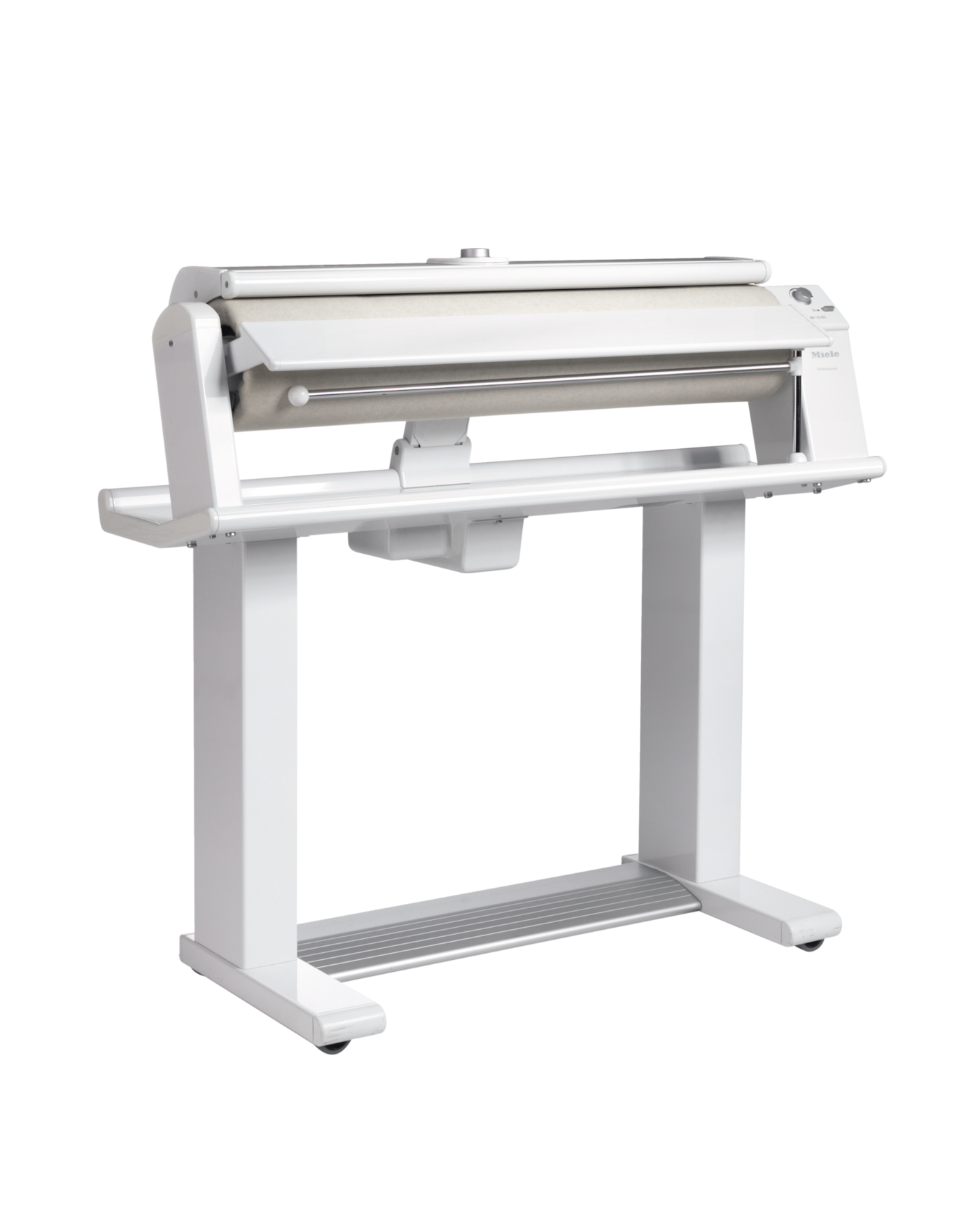

HM 16-83
Flatwork ironer, electrically heated With professional features for the best ironing results.
- Performance 15 kg/h*, roller diameter 160 mm, working width 830 mm

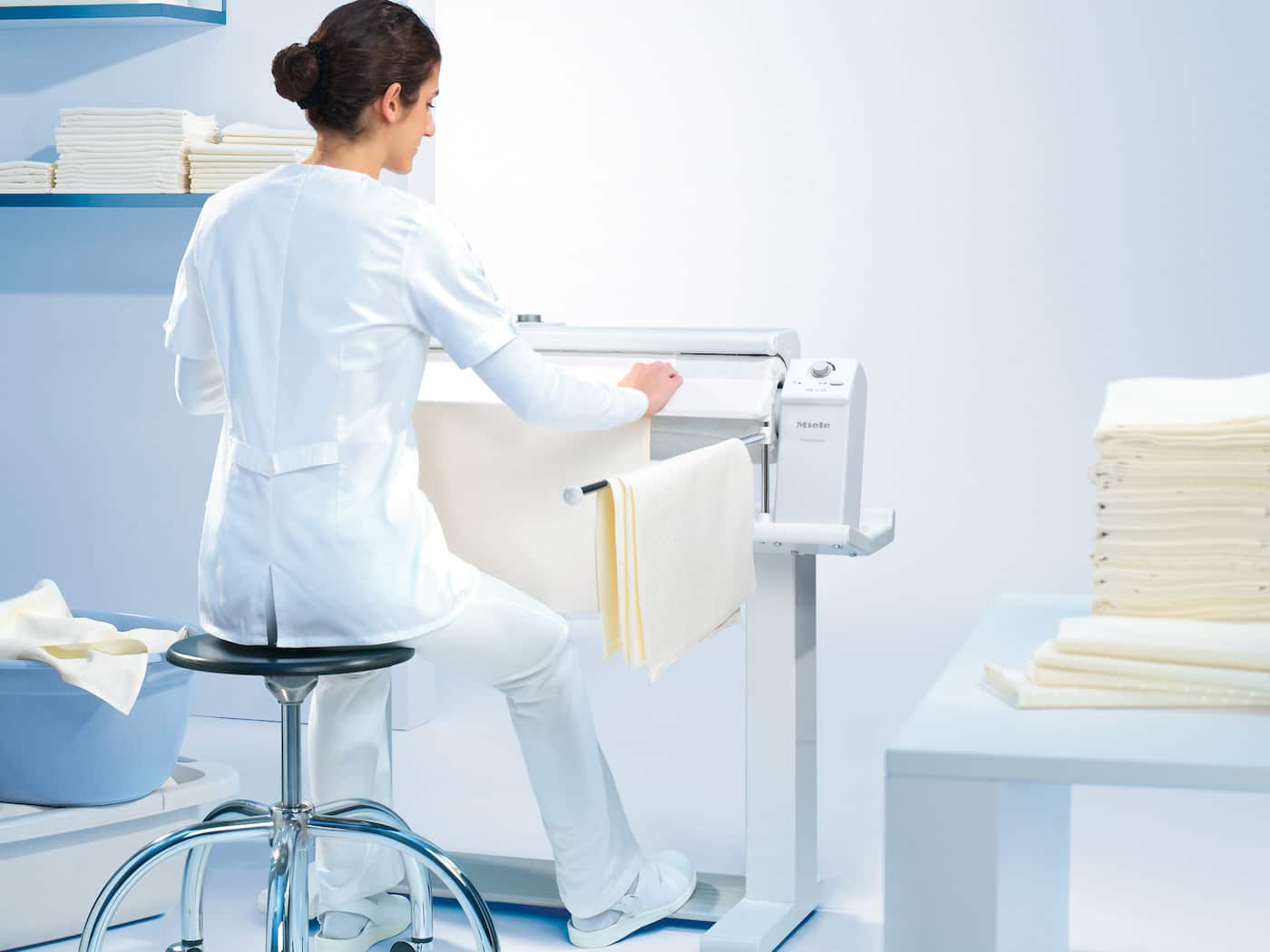

- Iron comfortably while seated
- Work at your own pace thanks to variable roller speed
- Durable roller padding – aramid needle felt cloth
- Robust design for professional use
Voltage:
AC 220-240V 50-60HZ 15 A
Product benefits
Low consumption values Economical and efficient: laundry machines from Miele Professional boast exceptionally low consumption values. Perfect laundry finish Uniform pressure over the entire working width guarantees a perfect laundry finish. Durable ironing cloth The extremely durable ironing cloths are particularly long-lasting and heat-resistant. Finger guard A focus on safety: the finger guard is triggered if fingers come too close to the roller when feeding in laundry. Low consumption values Economical and efficient: laundry machines from Miele Professional boast exceptionally low consumption values. Fabric-compatible temperature selection The temperature can be set according to the type of fabric, residual moisture level, and ironing finish required. Perfect laundry finish Uniform pressure over the entire working width guarantees a perfect laundry finish. Quick-heating aluminium heater plate The quick-heating aluminium heater plate ensures the ironer is ready to operate in the shortest time possible. Durable ironing cloth The extremely durable ironing cloths are particularly long-lasting and heat-resistant. Stability The robust design and a stable base ensure a high degree of stability. Finger guard A focus on safety: the finger guard is triggered if fingers come too close to the roller when feeding in laundry. 4 castors With its 4 castors, the ironer can be pulled or pushed from one location to the other, effortlessly. Convenient airing bar The fold-out airing bar allows crease-free cooling and airing of ironed laundry. Convenient foot switch The roller is operated via a footswitch, leaving both hands free to arrange items. Convenient laundry return feed The ironed laundry is automatically returned to the input side. Easy feeding in of laundry The feed board makes it easy to feed the laundry into the ironer accurately. Feed-in and return at the front When in use, the ironer requires only a minimum amount of space as it can be installed against a wall. Ironing while seated Ergonomic and comfortable: ironing without any strain on the back. Variable roller speed Always the perfect speed when ironing.
Product benefits
- Highlights
- Efficiency
- Gentle laundry care
- Performance
- Quality
- User convenience
Highlights
Efficiency
Gentle laundry care
Performance
Quality
User convenience


Perfect laundry finish
Perfect under pressure
Uniform pressure over the entire working width guarantees a perfect laundry finish.

Durable ironing cloth
Robust housing
The extremely durable ironing cloths are particularly long-lasting and heat-resistant.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
HM 16-83
EAN 4002512535212 / Article number 53168304AUS / Material number 05514260
| Heating type | Electric |
| Electrical connection | AC 220-240V 50-60HZ |
| Electric drying class in kW | 2.7-3.3 |
| Total rated load in kW | 2.8-3.3 |
| Fuse rating in A | 15 |
- Heating type
- Electric
- Electrical connection
- AC 220-240V 50-60HZ
- Electric drying class in kW
- 2.7-3.3
- Total rated load in kW
- 2.8-3.3
- Fuse rating in A
- 15
| External dimensions, height in mm | 960 |
| External dimensions, width in mm | 1050 |
| External dimensions, depth in mm | 380 |
| External dimensions, gross height in mmi | 1010 |
| External dimensions, gross width in mmi | 1110 |
| External dimensions, gross depth in mmi | 445 |
| Net weight in kg | 40 |
| Gross weight in kgi | 47 |
| Maximum floor load in N | 372 |
- External dimensions, height in mm
- 960
- External dimensions, width in mm
- 1050
- External dimensions, depth in mm
- 380
- External dimensions, gross height in mmi
- 1010
- External dimensions, gross width in mmi
- 1110
- External dimensions, gross depth in mmi
- 445
- Net weight in kg
- 40
- Gross weight in kgi
- 47
- Maximum floor load in N
- 372
| 2 adjustable feet | |
| Automatic finger guard/finger guard | |
| Foot switch | |
| Airing bar | |
| 4 castors gentle on the floor | |
| Feed-in board | |
| Laundry return feed | |
| Option of ironing when seated | |
| Machine-independent accessories |
| VDE | |
| CE | |
| VDE-EMC | |
| RCM | |
| Complies with Machinery Directive 2006/42/EC |
- VDE
- CE
- VDE-EMC
- RCM
- Complies with Machinery Directive 2006/42/EC
